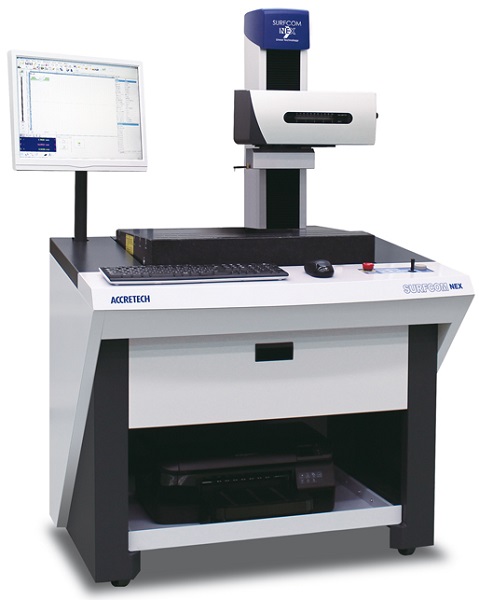

SURFCOM NEX 100
The latest generation with innovative dual technology
2 measuring systems combined in one sensor
Roughness and contour detector with 5 mm
Deflection 10 mm with double stylus length
No change of the probe system
Low-vibration feed unit by linear motor
Straightness accuracy (0.05 + L / 1000) μm
Z-precision +/- (1.0 + 2H / 100) μm
High resolution of the probe system 1.0 nm
- Patented linear technology enables high-precision low-vibration measurements
- Maintenance-free due to contactless drive
- CNC tables for automatic positioning of the workpiece
- Topography option with Y-table
- Topography option with SURFCOM Map software and the Accretech patented Y-Driver, which enables the measurement of even large workpieces.
- Uniform software ACCTee for the analysis of contour and roughness profiles
Mit diesen Köpfen kombinierbar:
Nex 001
Nex 030
Nex 040
Nex 100
optical sensor
