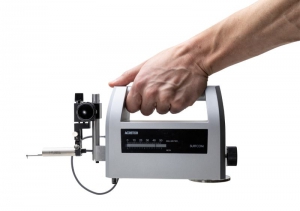

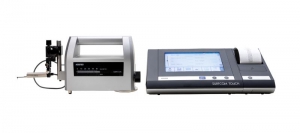

SURFCOM TOUCH 50
Portable surface measuring device with free probe system
Compact model for surface measurements in the production hall and measuring room — with high straightness precision and a wide measuring range.
Excellent price-performance ratio
Simple and self-explanatory user interface with 7-inch touch display
Resolution of up to 0.0001 μm and a maximum Z measuring range of 1000 μm (2000 μm/double probe arm length)
X axis guide accuracy of 0.3 μm with a measuring length of up to 50 mm
Different probe arms can be easily changed and calibrated
User-friendly, multilingual user software
USB/Micro USB interface for extended data storage and transfer to the analytical software (supportware II)
Analytical unit with integrated printer
Simple and self-explanatory user interface with 7-inch touch display
Resolution of up to 0.0001 μm and a maximum Z measuring range of 1000 μm (2000 μm/double probe arm length)
X axis guide accuracy of 0.3 μm with a measuring length of up to 50 mm
Different probe arms can be easily changed and calibrated
User-friendly, multilingual user software
USB/Micro USB interface for extended data storage and transfer to the analytical software (supportware II)
Analytical unit with integrated printer
High-performance battery for mobile use
- High-precision and compact tracing driver
- The tracing driver is characterised by a high guide accuracy of 0.3 μm / 50 mm.
